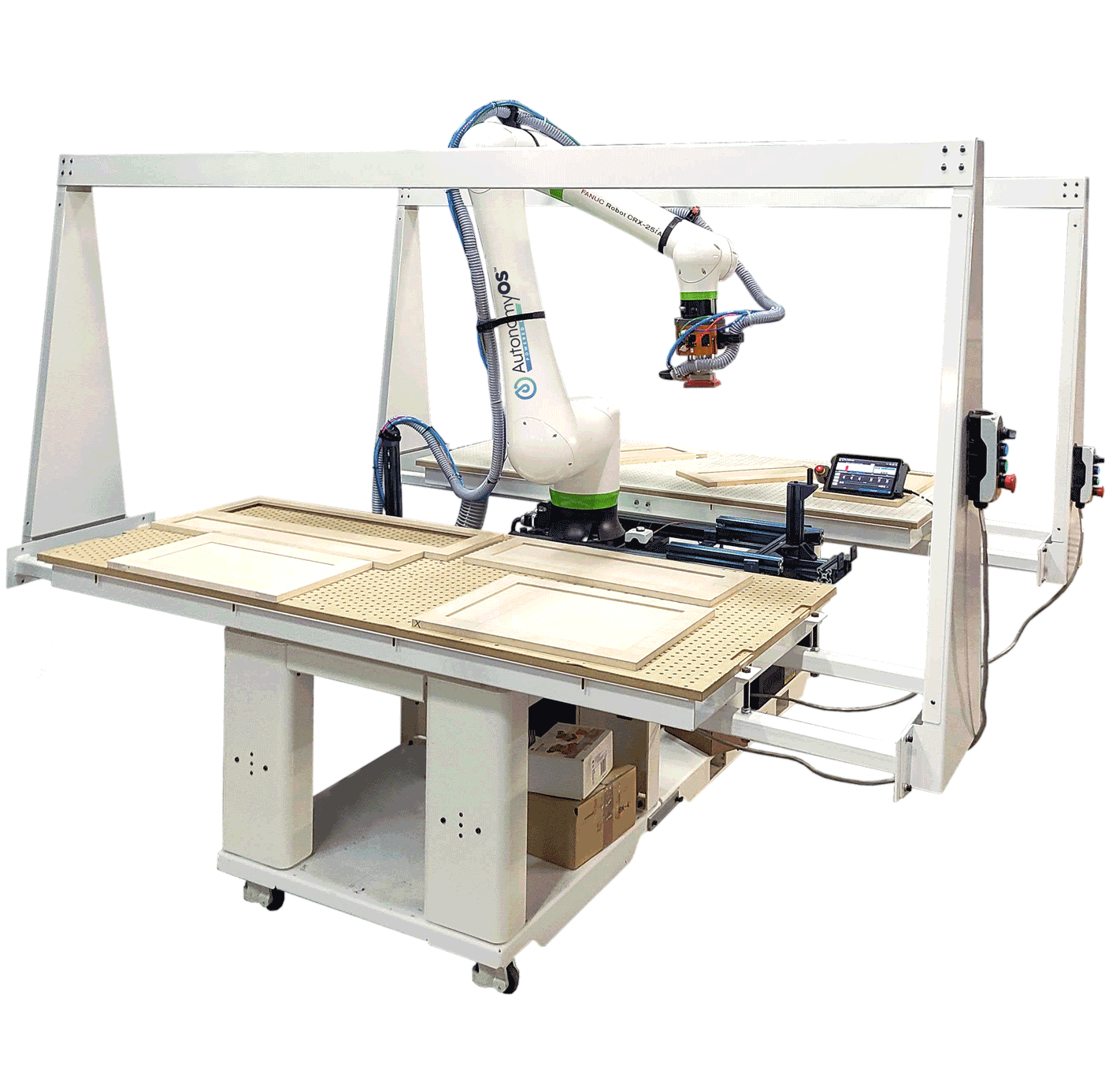

Robotic Sander, the Panel Sanding Assistant product from Omnirobotic

Panel Sanding Assistant

The Panel Sanding Assistant offers autonomous sanding quality and performance in its simplest form. Specially designed for kitchen cabinet manufacturers, this advanced sanding machine will help you face the skilled labor-shortage and boost your productivity.

NO TRAINING TO OPERATE icon

No training to operate

FAST PAYBACK icon

Fast payback

SMALL FOOTPRINT icon

Small Footprint

CONSISTENT SANDING QUALITY icon

Consistent Sanding Quality

No training to operate
Fast Payback
Small Footprint
Consistent Sanding Quality

Proven & Tested by Kitchen Manufacturer

  • Dual vacuum table handles demanding workloads of up to 500 panels per shift smoothly and efficiently.
  • Six-axis robot arm: Replicates human arm and compensates for variations, ensuring perfect and consistent sanding quality, superior to human results.
  • Built-in Neural Engine performs every sanding task autonomously on various panels and frames without fixtures or additional setup.
  • Designed to make a difference, it does the heavy lifting to improve the working conditions of the people working alongside it.
  • Simple, safe, and robust: Anyone can operate it. No specialized staff or training is required.
  • Small footprint and mobile: Make installation easy without stopping your production
  • Fast Return on investment, yet a durable machine built to last with minimal maintenance.

Robotic Sander Easy as One, Two, Three

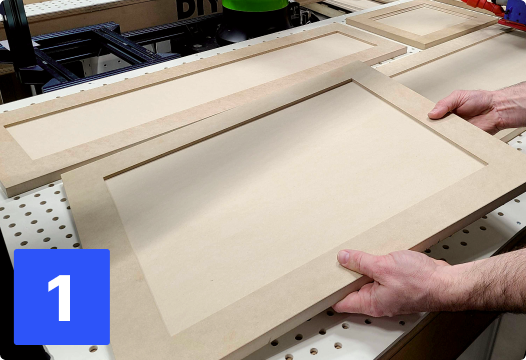

Step 1: Place your panels on the table

Place your panels on the table

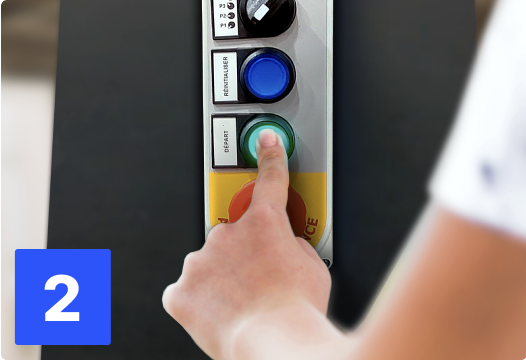

Step 2: Push Start Button

Push Start Button

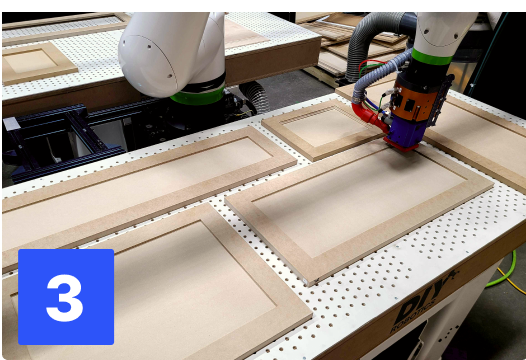

Step 3: Your Assistant will sand your panels to perfection

Your robotic Assistant will sand your panels to perfection

Easy as One, Two, Three

Design to Make a Difference

Step 1: Place your panels on the table

Place your panels on the table

Step 2: Push Start Button

Push Start Button

Step 3: Your Assistant will sand your panels to perfection

Your Assistant will sand your panels to perfection

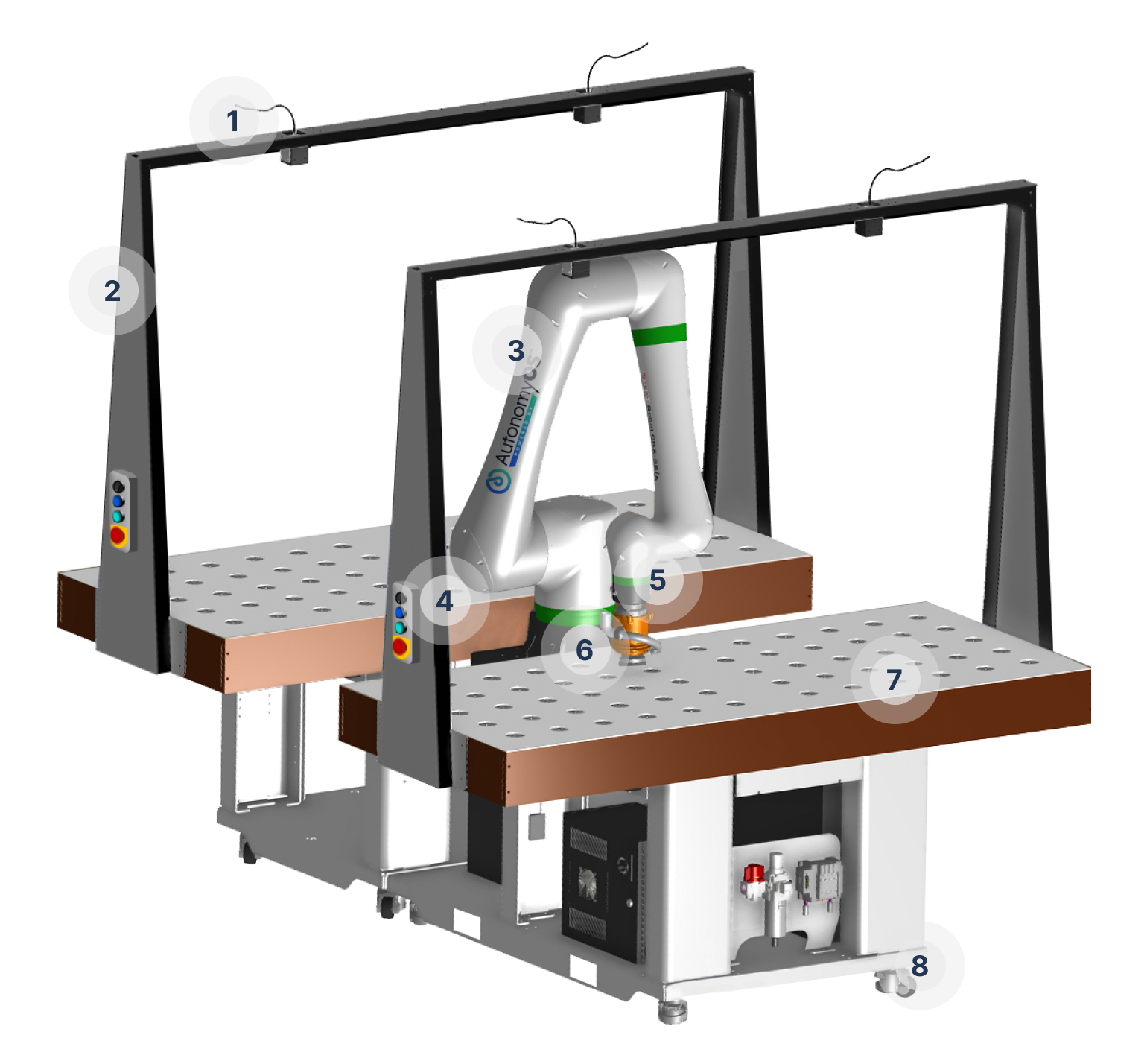

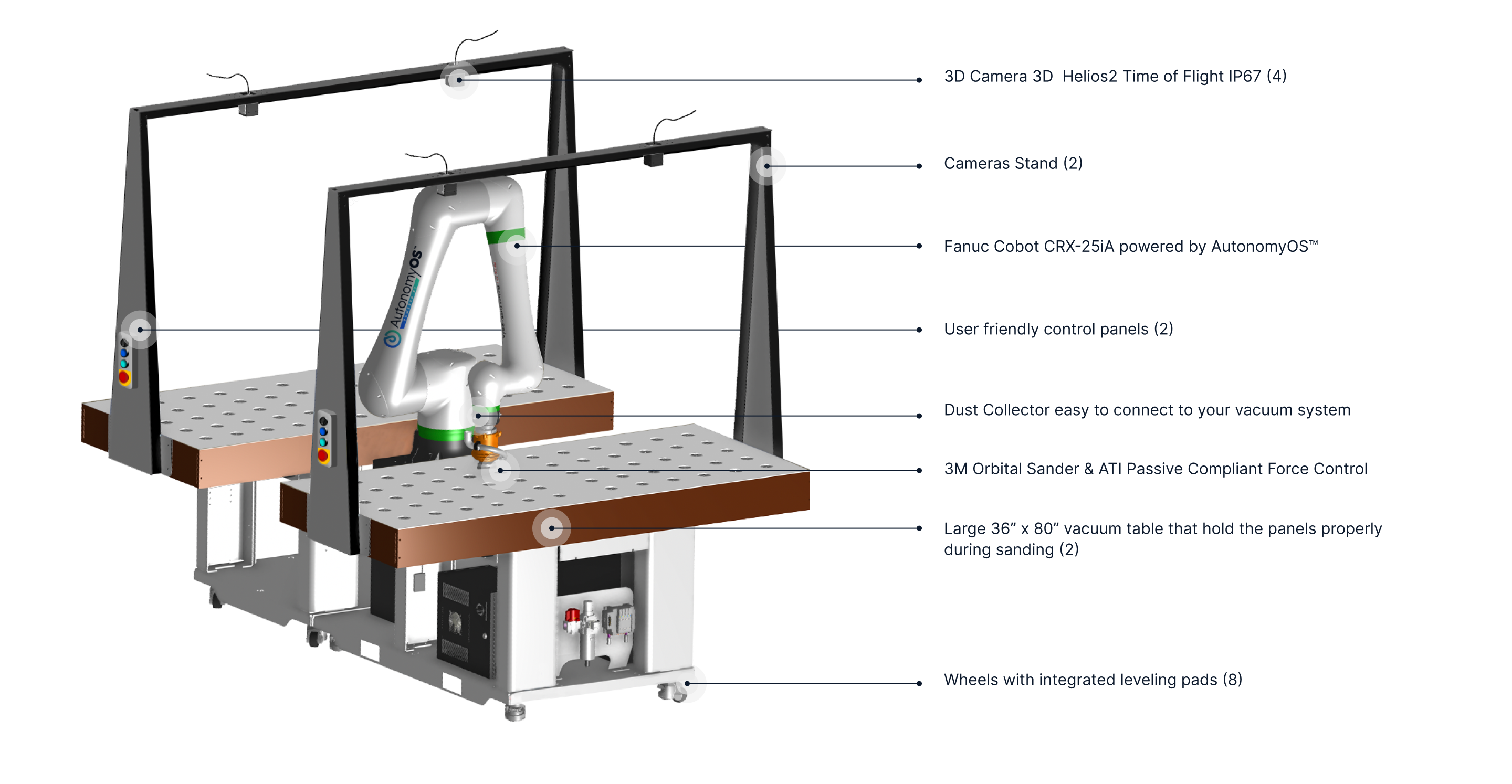

Overview

Robotic sander Overview

Overview

Robotic Sander Overview
  1. Industrial 3D Camera (IP67)
  2. Fanuc CRX-25iA Cobot (IP67)
  3. Standard Pneumatic Orbital Sander (Square)
  4. Operator Friendly Control Panel
  5. Dual Vacuum Table
  6. OmniBrain™ (Fanless industrial Server)

Videos

Play Video

Panel Sanding Assistant

An autonomous robotic sanding machine Powered by AutonomyOS™

Play Video

Customer Testimonial

What they say about the Panel Sanding Assistant

Generals Properties

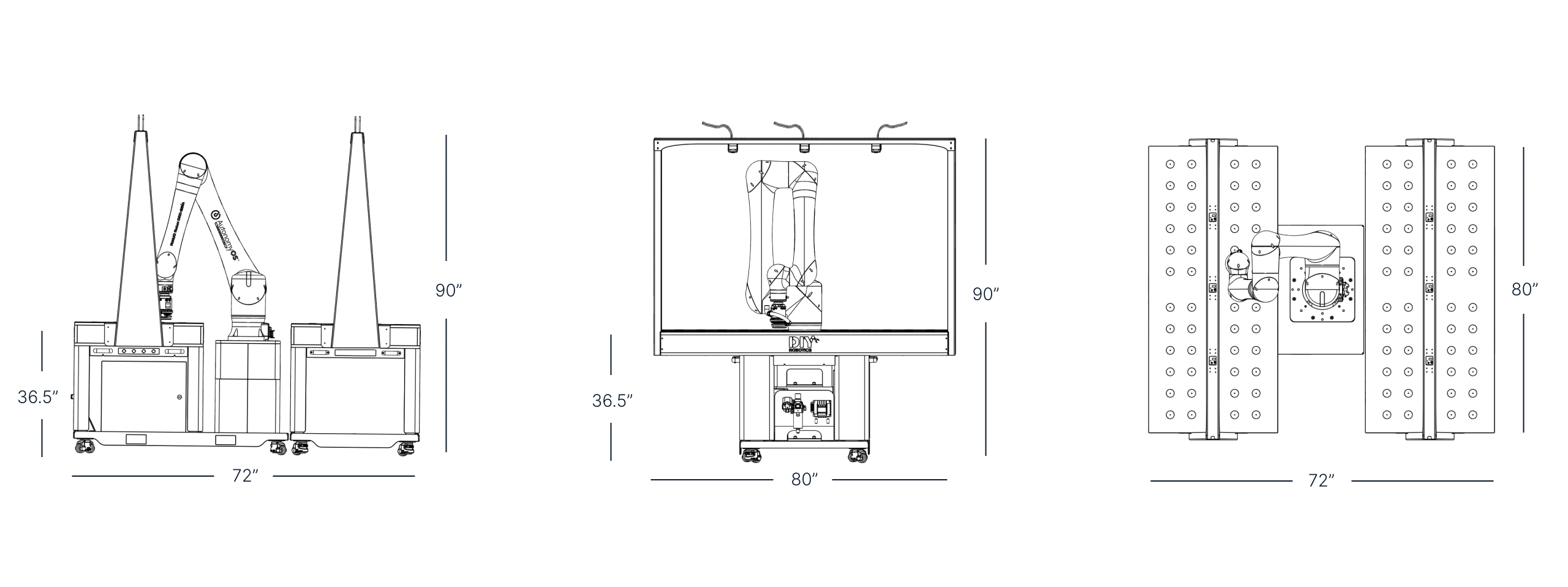

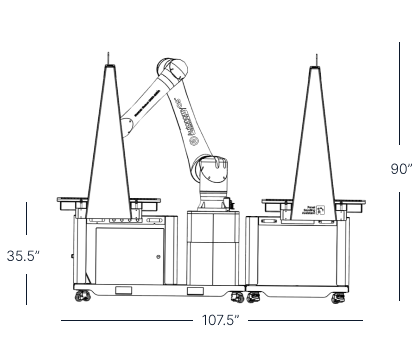

Machine Footprint

3x3m (120x120”)

Required # of operators

From 1/2 to 2 people per machine, depending on the amount of secondary operations (manual) required and your team’s organization.

Warranty

1 Year on main components

Sanding Capacity

Purpose

Sanding raw MDF or hardwood and denibbing primed/painted panels

Panel Size Capacity

Min. size: 100x100mm (4x4”) Max. size: 2032x914mm (80x36”)

Pocket Size Capacity

Min. pocket size: 92x116mm (3.6x4.5”)

Productivity

Up to 500 panels per 8h, 135m2 (1458ft2)
Depending on the sanding parameters and loading conditions

Motion Precision

0.1mm accuracy from detected edge

Power Tool

1 - 45 Newton

Admin Ajustable Parameters

Tool Advance Rate

1 to 300mm/s (0.04 to 11.8”/s)

Tool Force

1 to 50 Newtons (0.22 to 11.2 lb-f)

Passes Overlap

0 to 100%

Number of Passes

Single or multiple

Motion Precision

0.1 mm accuracy from detected edge

Media Type

Up to 3 different grits (120 to 400)

Power Requirements

Electrical

208 to 240 VAC @ 15A.

Vacuum (Min.)

1.5 kPa @ 20m3/min (6“ of water @ 700 cfm)

Pneumatic

5.5 bar @ 480 lpm (80 psi @ 17 cfm)

Environment

Temperature 0 - 45°C (32 - 113°F) Humidity 0% - 90% non-condensing

Material Supported

Robotic sander material supported: Raw MDF
Raw MDF
Robotic sander material supported: Raw wood
Raw wood
Robotic sander material supported: Varnished Wood
Varnished Wood
Robotic sander material supported: Primed MDF or Wood
Primed MDF or Wood
Robotic sander material supported: Painted MDF or Wood
Painted MDF or Wood

Example of Supported Style

Robotic sander Example of Supported Style: Flat panel
Flat panel
Robotic sander Example of Supported Style: Flat center panels with-raised flat frame.
Flat center panels with-raised flat frame*
Robotic sander Example of Supported Style: Flat center panels-with raised flat-frame
Flat center panels-with raised flat-frame
Robotic sander Example of Supported Style: Frame only (no center panel)
Frame only (no center panel)
Robotic sander Example of Supported Style: Perforated or-grooved flat panels
Cadre seulement (aucun panneau central)
Robotic sander Example of Supported Style: Flat center panels-with minimally raised-thin flat frame
Flat center panels-with minimally raised-thin flat frame
Robotic sander Example of Supported Style: Multi-cavity panels-with asymmetrical-framing
Multi-cavity panels-with asymmetrical-framing
Robotic Sander Example of Supported Style: dimension cavity-(less than 92mm-wide)
dimension cavity-(less than 92mm-wide)

*Corner-or fine moldings must be-sanded by hand.

Example of Unsupported Style

Robotic Sander Example of Unsupported Style: Cathedral or fretwork-panels
Cathedral or fretwork-panels
Robotic sander Example of Unsupported Style: Raised flat frame-with molding
Raised flat frame-with molding
Robotic sander Example of Unsupported Styles. Shaped central-corner panels
Shaped central-corner panels
Robotic Sander illustration, the Panel Sanding Assistant from Omnirobotic

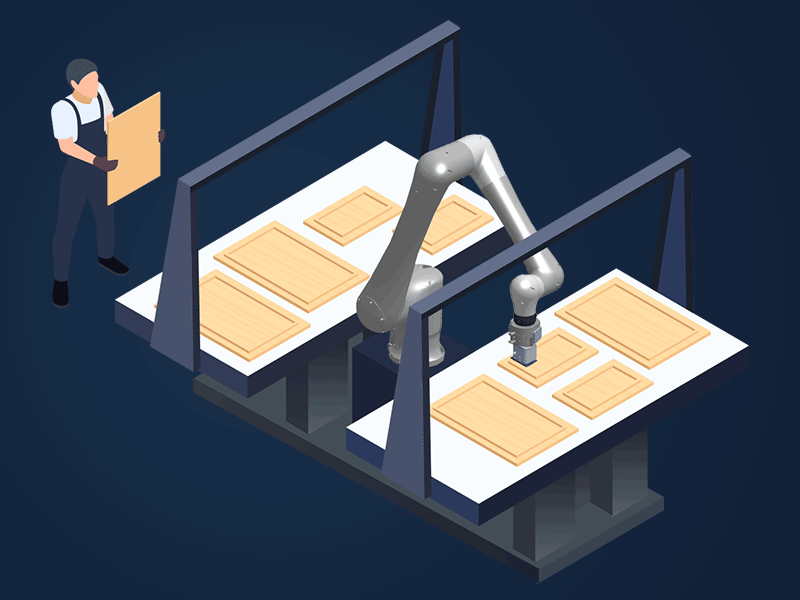

Built to collaborate with humans

The robotic sander is safe to work alongside with humans, so it will do the bulk of the sanding and multiply the effectiveness of his human teammate. Empower and retain your employees by equipping them with a Sanding Panel Assistant today.

Robotic sander

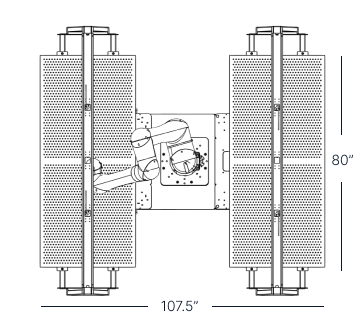

Small footprint. Large Capacity.

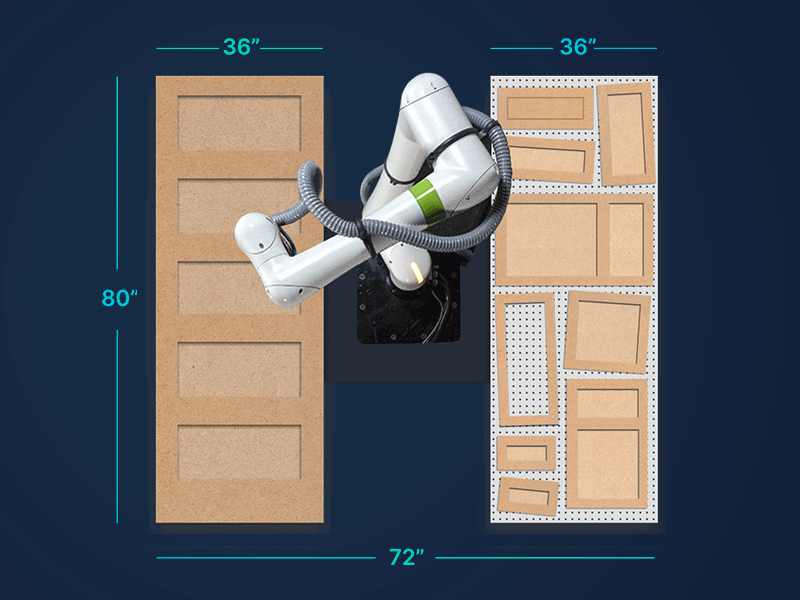

This robotic sander compact cell fits on any factory floor. The 80 x 36 inches vacuum tables can support many panels at once or even doors.

3 workers = Robotic Sander + one worker

Fast Payback

Your team can manage loading and unloading with ease while your robotic sander never misses a beat. The Panel Sanding Assistant typically pays for itself within a year and be running for decades, making it an excellent investment.

Products

Request a Quote

Forget about infrastructure plans, technical specifications and complex procedures. The Panel Sanding Assistant is like buying a dishwasher. Our product will sand your panels to perfection according to the presets you define. Face labor shortages with the Panel Sanding Assistant.
